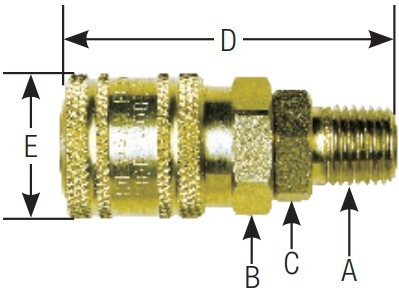

1/2" BODY SIZE SOCKET - ONE WAY VALVED - BRASS
Members Only Pricing - Login or Signup for Your Special Rates
Socket Construction
BRASS
Brass Sleeve
Brass Barrel
Brass Adapter
302 Stainless Balls
302 Stainless Springs
Brass Valve
Buna Rubber Washer
|
Vendor Part # |
Body Size |

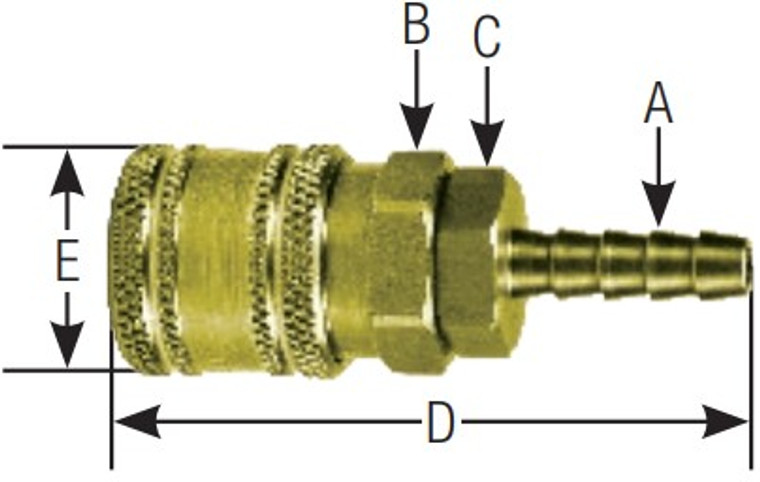

Thread Size [A] |
Hex (1) Size [B] |
Hex (2) Size [C] |
O.A.L. [D] |
Max OD [E] |
Weight Lbs. |
|
7H-120-1-S-BRS-380FNPT |
1/2" |
3/8" |
1-1/8" |
1-1/16" |
3.5" |
1.3" |
0.57 |
|
7H-120-1-S-BRS-120FNPT |
1/2" |
1/2" |
1-1/8" |
1-1/16" |
3.50" |
1.3" |
0.53 |
|
7H-120-1-S-BRS-340FNPT |
1/2" |
3/4" |
1-1/8" |
1-3/16" |
3.75" |
1.3" |
0.56 |
|
7H-120-1-S-BRS-140MNPT |
1/2" |
1/4" |
1-1/8" |
1-1/16" |
3.31" |
1.30" |
0.44 |
|
7H-120-1-S-BRS-380MNPT |
1/2" |
3/8" |
1-1/8" |
1-1/16" |
3.31" |
1.30" |
0.46 |
|
7H-120-1-S-BRS-120MNPT |
1/2" |
1/2" |
1-1/8" |
1-1/16" |
3.50" |
1.30" |
0.48 |
|
7H-120-1-S-BRS-340MNPT |
1/2" |
3/4" |
1-1/8" |
1-1/16" |
3.50" |
1.30" |
0.54 |
|
7H-120-1-S-BRS-380BRB |
1/2" |
3/8" |
1-1/8" |
1-1/16" |
3.75" |
1.3" |
0.46 |
|
7H-120-1-S-BRS-120BRB |
1/2" |
1/2" |
1-1/8" |
1-1/16" |
3.75" |
1.3" |
0.45 |
|
7H-120-1-S-BRS-340BRB |
1/2" |
3/4" |
1-1/8" |
1-1/16" |
3.75" |
1.3" |
0.48 |
|
7H-120-1-S-BRS-380580RU |
1/2" |
3/8" X 5/8" |
1-1/8" |
1-1/16" |
3.80" |
1.3" |
0.55 |
|
7H-120-1-S-BRS-3801116RU |
1/2" |
3/8" X 11/16" |
1-1/8" |
1-1/16" |
3.80" |
1.3" |
0.54 |
|
7H-120-1-S-BRS-380340RU |
1/2" |
3/8" X 3/4" |
1-1/8" |
1-1/16" |
3.80" |
1.3" |
0.52 |
|
7H-120-1-S-BRS-1201316RU |
1/2" |
1/2" X 13/16" |
1-1/8" |
1-1/16" |
4.25" |
1.3" |
0.65 |
|
7H-120-1-S-BRS-120780RU |
1/2" |
1/2" X 7/8" |
1-1/8" |
1-1/16" |
4.25" |
1.3" |
0.64 |
|
7H-120-1-S-BRS-1201516RU |
1/2" |
1/2" X 15/16" |
1-1/8" |
1-1/16" |
4.25" |
1.3" |
0.62 |
- Base Unit:
- EA
