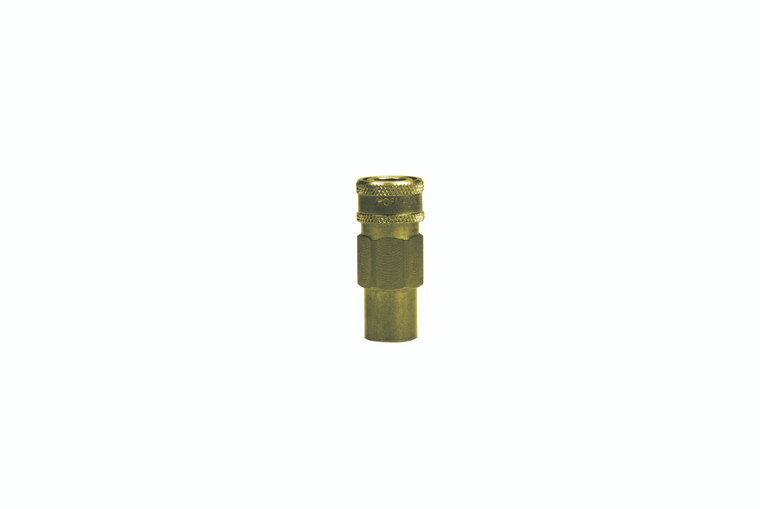

1/8" BODY SIZE SOCKET - ONE WAY VALVED - BRASS

1/8" BODY SIZE SOCKET - ONE WAY VALVED - BRASS

SKU:
7H-180-1-S-BRS
Members Only Pricing - for Your Special Rates
Current Stock:
Sign In
Description

Must use a straight thru socket with a straight thru plug only, will not work with one-way or two-wayvalve plugs.


Socket Construction

BRASS

Brass Body, Brass Sleeve, 440 Stainless Balls, 302 Stainless Springs, Nickel Plated Brass Valve, Viton Seal


Vendor Part #

Body Size

Thread Size [A]

Hex Size [B]

O.A.L. [D]

Max OD [E]

Weight Lbs.

7H-180-1-S-BRS-180FNPT

1/8"

1/8"

9/16"

1.51"

.625"

0.08

7H-180-1-S-BRS-140FNPT

1/8"

1/4"

9/16”

1.63"

.625"

0.09

7H-180-1-S-BRS-180MNPT

1/8"

1/8"

9/16"

1.42"

.625"

0.07

7H-180-1-S-BRS-140MNPT

1/8"

1/4"

9/16”

1.58"

.625"

0.09

7H-180-1-S-BRS-316BRB

1/8"

3/16"

9/16"

2.13"

.625"

0.05

7H-180-1-S-BRS-140BRB

1/8”

1/4"

9/16”

1.88"

.625"

0.06

7H-180-1-S-BRS-316380RU

1/8"

3/16" x 3/8" ID x OD

9/16"

1.52"

.625"

0.07

Additional Information
Base Unit:
EA
