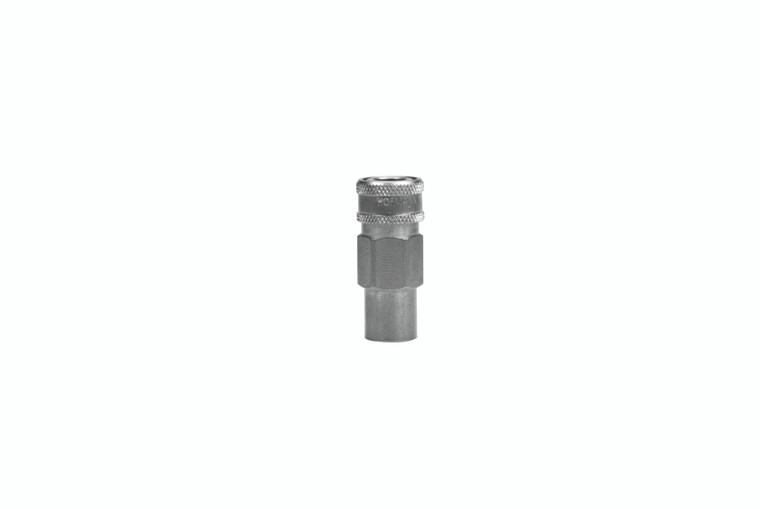

1/8" BODY SIZE SOCKET - ONE WAY VALVED - ELECTROLESS NICKEL

1/8" BODY SIZE SOCKET - ONE WAY VALVED - ELECTROLESS NICKEL

SKU:
7H-180-1-S-EN
Members Only Pricing - for Your Special Rates
Current Stock:
Sign In
Description

Must use a straight thru socket with a straight thru plug only, will not work with one-way or two-wayvalve plugs.


Socket Construction


ELECTROLESS NICKEL PLATED

Electroless Nickel Plated Brass Body, Electroless Nickel Plated Brass Sleeve, 440 Stainless Balls, 302 Stainless Springs, Nickel Plated Brass Valve, Viton Seal


Vendor Part #

Body Size

Thread Size [A]

Hex Size [B]

O.A.L. [D]

Max OD [E]

Weight Lbs.

7H-180-1-S-EN-180FNPT

1/8"

1/8"

9/16"

1.51"

.625"

0.08

7H-180-1-S-EN-140FNPT

1/8”

1/4"

9/16”

1.63"

.625"

0.09

7H-180-1-S-EN-180MNPT

1/8"

1/8"

9/16"

1.42"

.625"

0.07

7H-180-1-S-EN-140MNPT

1/8"

1/4"

9/16”

1.58"

.625"

0.09

7H-180-1-S-EN-316BRB

1/8"

3/16"

9/16"

2.13"

.625"

0.05

7H-180-1-S-EN-140BRB

1/8”

1/4"

9/16”

1.88"

.625"

0.06

7H-180-1-S-EN-316380RU

1/8"

3/16" x 3/8" ID x OD

9/16"

1.52"

.625"

0.07

Additional Information
Base Unit:
EA
