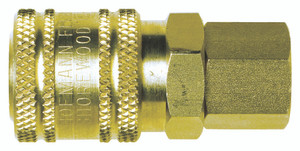

3/4" BODY SIZE SOCKET - ONE WAY VALVED - BRASS
Members Only Pricing - Login or Signup for Your Special Rates
Socket Construction
AUTOMATIC Q SERIES
Brass Sleeve, Brass Barrel, Brass Adapter, 416 Stainless Pins, 302 Stainless Springs, Steel Valve, Buna Rubber Washer
|
Part # |
Body Size |
Thread Size [A] |
Hex (1) Size [B] |
O.A.L. [D] |
Max OD [E] |
Weight Lbs. |
|
7H-340-1-S-BRS-120FNPT |
3/4" |
1/2" |
1.31" |
2.67" |
1.84" |
0.92 |
|
7H-340-1-S-BRS-340FNPT |
3/4" |
3/4" |
1.31" |
2.88" |
1.84" |
0.93 |
|
7H-340-1-S-BRS-100FNPT |
3/4" |
1" |
1.31" |
3.12" |
1.84" |
1.11 |
|
7H-340-1-S-BRS-340FNPT |
3/4" |
3/4" |
1.31" |
3.38" |
1.69" |
0.91 |
|
7H-340-1-S-BRS-100FNPT |
3/4" |
1" |
1.56" |
3.63" |
1.69" |
1.07 |
|
7H-340-1-S-BRS-120MNPT |
3/4" |
1/2" |
1.31" |
2.75" |
1.84" |
0.81 |
|
7H-340-1-S-BRS-340MNPT |
3/4" |
3/4" |
1.31" |
2.90" |
1.84" |
0.85 |
|
7H-340-1-S-BRS-100MNPT |
3/4" |
1" |
1.31" |
3.08" |
1.84" |
0.99 |
|
7H-340-1-S-BRS-340MNPT |
3/4" |
3/4" |
1.18" |
3.56" |
1.69" |
0.87 |
|
7H-340-1-S-BRS-100MNPT |
3/4" |
1" |
1.31" |
3.75" |
1.69" |
1.05 |
|
7H-340-1-S-BRS-120BRB |
3/4" |
1/2" |
1.31" |
3.33" |
1.84" |
0.81 |
|
7H-340-1-S-BRS-340BRB |
3/4" |
3/4" |
1.31" |
3.65" |
1.84" |
0.86 |
|
7H-340-1-S-BRS-100BRB |
3/4" |
1" |
1.31" |
3.83" |
1.84" |
1 |
|
7H-340-1-S-BRS-340BRB |
3/4" |
3/4" |
1.18" |
4.53" |
1.69" |
0.94 |
- Base Unit:
- EA
