3/8" BODY SIZE SOCKET - ONE WAY VALVED - BRASS
Socket Construction
BRASS
Brass Sleeve
Brass Barrel
Brass Adapter
302 Stainless Balls
302 Stainless Springs
Brass Valve
Buna Rubber Washer

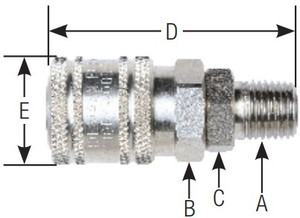

Vendor Part # |
Body Size |
Thread Size [A] |
Hex (1) Size [B] |
Hex (2) Size [C] |
O.A.L. [D] |
Max OD [E] |
Weight Lbs. |
7H-380-1-S-BRS-140FNPT |
3/8" |
1/4" |
1" |
15/16" |
2.82" |
1.25" |
0.39 |
7H-380-1-S-BRS-380FNPT |
3/8" |
3/8" |
1" |
15/16" |
2.82" |
1.25" |
0.36 |
7H-380-1-S-BRS-120FNPT |
3/8" |
1/2" |
1" |
15/16" |
2.82" |
1.25" |
0.34 |
7H-380-1-S-BRS-140MNPT |
3/8" |
1/4" |
1" |
15/16" |
2.85" |
1.25" |
0.31 |
7H-380-1-S-BRS-380MNPT |
3/8" |
3/8" |
1" |
15/16" |
2.85" |
1.25" |
0.33 |
7H-380-1-S-BRS-120MNPT |
3/8" |
1/2" |
1" |
15/16" |
2.90" |
1.25" |
0.38 |
7H-380-1-S-BRS-140BRB |
3/8" |
1/4" |
1" |
15/16" |
3.25" |
1.25" |
0.31 |
7H-380-1-S-BRS-516BRB |
3/8" |
5/16" |
1" |
15/16" |
3.25" |
1.25" |
0.31 |
7H-380-1-S-BRS-380BRB |
3/8" |
3/8" |
1" |
15/16" |
3.25" |
1.25" |
0.31 |
7H-380-1-S-BRS-120BRB |
3/8" |
1/2" |
1" |
15/16" |
3.25" |
1.25" |
0.32 |
7H-380-1-S-BRS-380580RU |
3/8" |
3/8" X 5/8" |
1" |
15/16" |
3.75" |
1.25" |
0.43 |
7H-380-1-S-BRS-3801116RU |
3/8" |
3/8" X 11/16" |
1" |
15/16" |
3.75" |
1.25" |
0.42 |
7H-380-1-S-BRS-380340RU |
3/8" |
3/8" X 3/4" |
1" |
15/16" |
3.75" |
1.25" |
0.4 |
- Base Unit:
- EA
