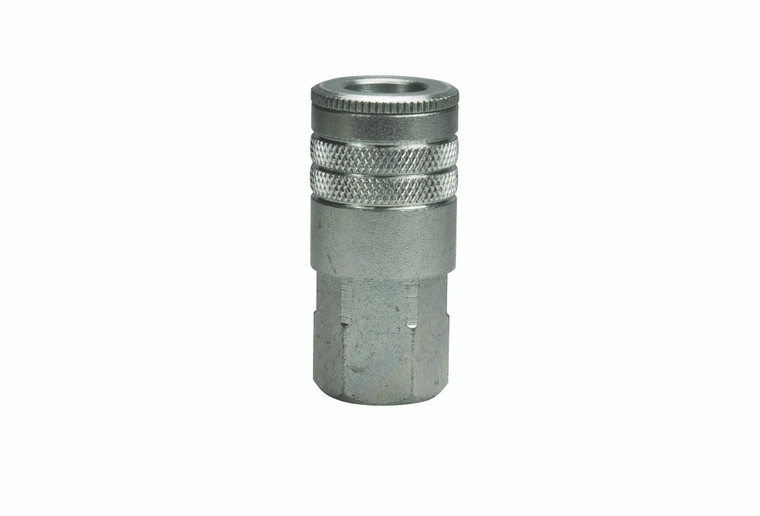

3/8" BODY SIZE SOCKET - ONE WAY VALVED - SLEEVE GUARD
Members Only Pricing - Login or Signup for Your Special Rates
Socket Construction
SLEEVE GUARD
Steel Sleeve
Steel Barrel
Steel Adapter
Chrome Steel Balls
Steel Springs
Steel Valve
Buna Rubber Washer
|
Vendor Part # |
Body Size |
Thread Size [A] |
Hex (2) Size [C] |
O.A.L. [D] |
Max OD [E] |
Weight Lbs. |
|
7H-380-1-S-SG-140FNPT |
3/8" |
1/4" |
7/8" |
2.41" |
1.13" |
0.3 |
|
7H-380-1-S-SG-380FNPT |
3/8" |
3/8" |
7/8" |
2.28" |
1.06" |
0.32 |
|
7H-380-1-S-SG-120FNPT |
3/8" |
1/2" |
1" |
2.55" |
1.16" |
0.34 |
|
7H-380-1-S-SG-140MNPT |
3/8" |
1/4" |
7/8" |
2.45" |
1.06" |
0.26 |
|
7H-380-1-S-SG-380MNPT |
3/8" |
3/8" |
7/8" |
2.39" |
1.06" |
0.29 |
|
7H-380-1-S-SG-120MNPT |
3/8" |
1/2" |
7/8" |
2.55" |
1.16" |
0.29 |
|
7H-380-1-S-SG-140BRB |
3/8" |
1/4" |
7/8" |
2.86" |
1.06" |
0.27 |
|
7H-380-1-S-SG-516BRB |
3/8" |
5/16" |
7/8" |
2.86" |
1.06" |
0.27 |
|
7H-380-1-S-SG-380BRB |
3/8" |
3/8" |
7/8" |
2.60" |
1.06" |
0.27 |
|
7H-380-1-S-SG-120BRB |
3/8" |
1/2" |
7/8" |
2.60" |
1.06" |
0.28 |
- Base Unit:
- EA
