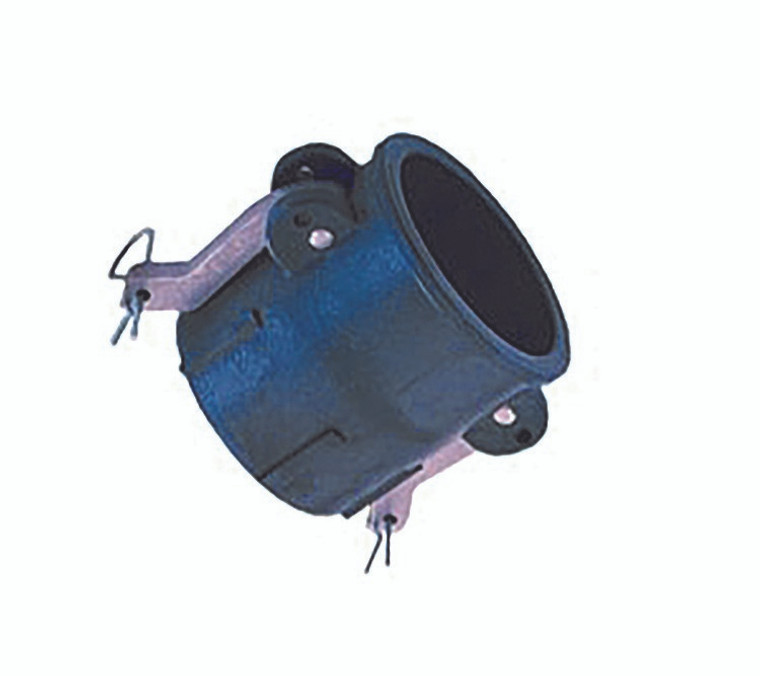

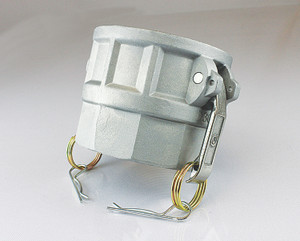

Part D – Coupler X Female NPT W/ Stainless Steel Handles
a full chemical resistance table and any other technical information you may need. We also offer a line of replacement gaskets in various materials, along with shims.
Note: Please ensure couplings are opened and closed using both handles at the same time for best results.
NYLON
• Safety latches available on all couplers and dust caps ranging in size from 1¼” to 4”
• Lightweight, ½ the weight of aluminum
• Strong, resists cross threading, thread seizure and “out-of-round” condition
• Chemical resistant to most acids (please contact us for a full chemical resistance table)
• Non-conducting
• All couplers feature stainless steel handles and pins, blue nylon handles available
• Interchangeable with other couplers and adapters manufactured to MIL-spec
• EPDM gaskets furnished standard. Buna-N, Viton® and Nitrile also available
• Temperature range under normal conditions - 30° F to 200° F
POLYPROPYLENE
• Safety latches available on all couplers and dust caps ranging in size from 1¼” to 4”
• Chemical resistant to most acids (please contact us for a full chemical resistance table)
• Temperature range from 10° F to 180° F
• All couplers feature stainless steel handles and pins
• Interchangeable with other couplers and adapters manufactured to MIL-spec
• EPDM gaskets furnished standard. Buna-N, Viton® and Nitrile also available
FOOD GRADE GLASS-FILLED POLYPROPYLENE
• Chemically resistant to most acids (please contact us for a full chemical resistance table)
• FDA / NSF compliant
• All couplers feature stainless steel handles and pins
• Interchangeable with other couplers and adapters manufactured to MIL-spec
• Nitrile gaskets furnished as standard. EPDM, Buna-N and Viton® also available
• Good mechanical strength
• Resistance to alkalies, salts and alcohols
• Resistance to animal, vegetable and mineral oils
• Resistance to phosphoric and hydrochloric acids
• Temperature range under normal conditions from 10° F to 180° F
PVC
• Use with PVC pipe
• Easy to install
• Socket solvent weld (cement)
• Stainless steel handles, rings and pins
• EPDM gaskets standard
• Economical
• Weather & corrosion resistant
POLYVINYLIDENE FLUORIDE (PVDF)
• Chemically resistant to most acids (please contact us for a full chemical resistance table)• Interchangeable with other couplers and adapters manufactured to MIL-spec
• EPDM gaskets furnished as standard. Buna-N, Viton® and Nitrile also available
• All couplers feature stainless steel handles and pins
• Nonflammable and self-extinguishing
• UV stable in the visible spectrum
• NSF compliant
• Temperature range under normal conditions from - 20° F to 300° F
SIZE | NY-GLASS | POLY-GLASS | ALL CHEM PVDF | PVC | FOOD-FLO |
1/4” | 4Z CND025S | — | — | — | — |
3/8” | 4Z CND038S | 4Z CPD038S | — | — | — |
1/2” | 4Z CND050S | 4Z CPD050S | 4Z CVD050S | 4Z CSD050S | — |
3/4” | 4Z CND075S | 4Z CPD075S | 4Z CVD075S | 4Z CSD075S | 4Z CFD075S |
3/4” X 1” | 4Z CND1075 | — | — | — | — |
1” | 4Z CND100S | 4Z CPD100S | 4Z CVD100S | 4Z CSD100S | 4Z CFD100S |
1-1/2” x 1-1/4” | 4Z CND125S | 4Z CPD125S | — | 4Z CSD125S | — |
1-1/2” | 4Z CND150S | 4Z CPD150S | 4Z CVD150S | 4Z CSD150S | 4Z CFD150S |
2” | 4Z CND200S | 4Z CPD200S | 4Z CVD200S | 4Z CSD200S | 4Z CFD200S |
3” | 4Z CND300 | 4Z CPD300 | 4Z CVD300 | 4Z CSD300S | 4Z CFD300S |
4” | 4Z CND400 | 4Z CPD400 | — | — | — |
