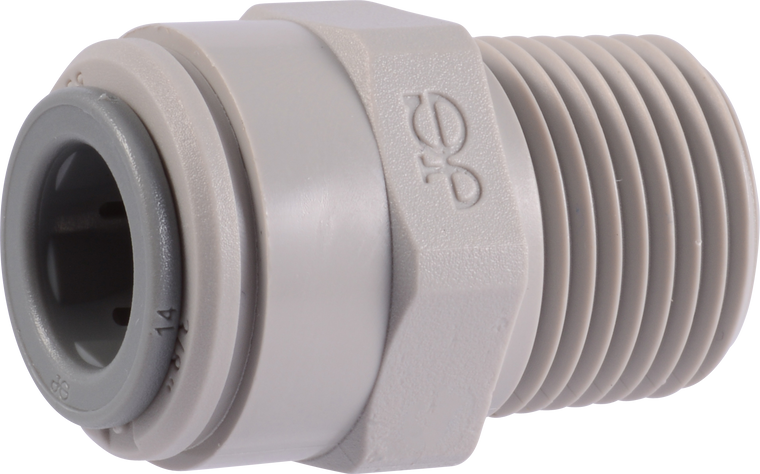

PART MC - MALE CONNECTOR - NPTF THREAD - ACETAL
Members Only Pricing - Login or Signup for Your Special Rates
The PI Range of inch-size push-in fittings is offered for tube sizes 5/32” O.D. to 1/2” O.D. The fittings are manufactured in gray acetal copolymer with food grade nitrile O-ring, making them especially suitable for applicants involving foodstuff and potable liquids. They are also suitable for air and inert gases and can therefore be used in CO2 lines, pneumatic applications and vacuum.
WORKING PRESSURES AND TEMPERATURES:
- 5/32”-5/16”: Max. 230 psi at 68˚F, Max. 150 psi at 150˚F
- 3/8”-1/2”: Max. 150 psi at 68°F, Max. 100 psi at 150°F
| PART # | JG PART # | TUBE O.D. | BAG QTY |
| 8J MC532180 | PM010421S | 5/32” | 10 |
| 8J MC532140 | PM010422S | 5/32” | 10 |
| 8J MC316180 | PI010621S | 3/16” | 10 |
| 8J MC140180 | PI010821S | 1/4” | 10 |
| 8J MC140140 | PI010822S | 1/4” | 10 |
| 8J MC140380 | PI010823S | 1/4” | 10 |
| 8J MC516180 | PM010821S | 5/16” | 10 |
| 8J MC516140 | PM010822S | 5/16” | 10 |
| 8J MC516380 | PM010823S | 5/16” | 10 |
| 8J MC380180 | PI011221S | 3/8” | 10 |
| 8J MC380140 | PI011222S | 3/8” | 10 |
| 8J MC380380 | PI011223S | 3/8” | 10 |
| 8J MC380120 | PI011224S | 3/8” | 10 |
| 8J MC120380 | PI011623S | 1/2” | 10 |
| 8J MC120120 | PI011624S | 1/2” | 10 |
| 8J MC580340 | PI012026S | 5/8” | 10 |
- Base Unit:
- EA
