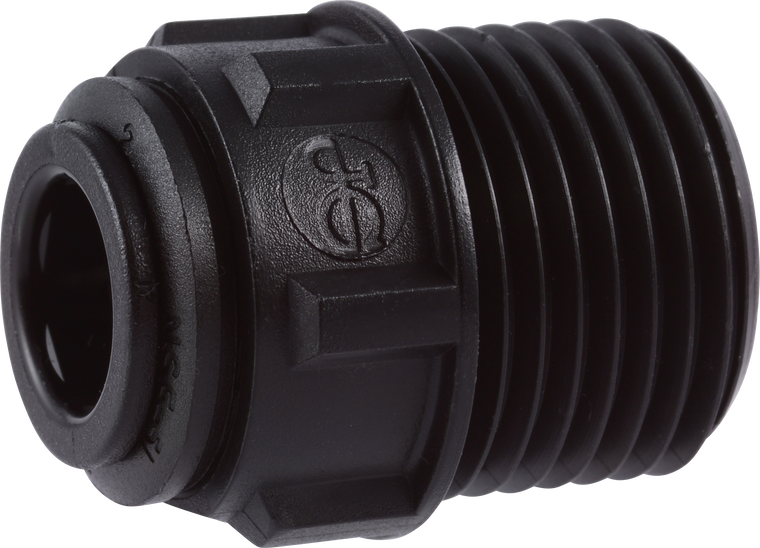

PART MC - MALE CONNECTOR - NPTF THREAD - BLACK POLY
Members Only Pricing - Login or Signup for Your Special Rates
The PP Range of inch-size push-in
fittings is offered for tube sizes 1/4” O.D. to 1/2” O.D. The fittings are
manufactured in black polypropylene with food grade EPDM O-rings. They
have been developed to satisfy the needs of the Water Purification and
Beverage Dispensing Markets. Black Polypropylene fittings are U.V.
Stabilized and are ideal for use in Agricultural Spraying, Car Wash
Chemical Dispense, Farm Machinery, and Dairy Equipment applications.
The PP Range is NOT suitable for
compressed air applications.
WORKING PRESSURES &
TEMPERATURES:
- Max. 150 psi at 70˚F (Max.
10 Bar at 20˚C)
- Max. 60 psi at 140˚F (Max. 4 Bar at 60˚C)
- Min. 33˚F/1˚C
| PART # | JG PART # | TUBE O.D. | THREAD NPTF | BAG QTY |
| 8J MC140180BP | PP010821E | 1/4” | 1/8” | 10 |
| 8J MC140140BP | PP010822E | 1/4” | 1/4” | 10 |
| 8J MC140380BP | PP010823E | 1/4” | 3/8” | 10 |
| 8J MC380140BP | PP011222E | 3/8” | 1/4” | 10 |
| 8J MC380380BP | PP011223E | 3/8” | 3/8” | 10 |
| 8J MC380102BP | PP011224E | 3/8” | 1/2” | 10 |
- Base Unit:
- EA
