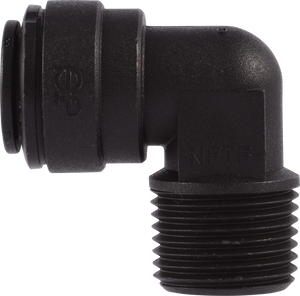

PART ME - MALE FIXED ELBOW - ACETAL
Members Only Pricing - Login or Signup for Your Special Rates
The PI Range of inch-size push-in
fittings is offered for tube sizes 5/32” O.D. to 1/2” O.D. The
fittings are manufactured in gray acetal copolymer with food grade nitrile
O-ring, making them especially suitable for applicants involving foodstuff
and potable liquids. They are also suitable for air and inert gases and
can therefore be used in CO2 lines, pneumatic applications and vacuum.
WORKING PRESSURES AND
TEMPERATURES:
- 5/32”-5/16”: Max. 230 psi at
68˚F, Max. 150 psi at 150˚F
- 3/8”-1/2”: Max. 150 psi at
68°F, Max. 100 psi at 150°F
| PART # | JG PART # | TUBE O.D. | THREAD NPTF | BAG QTY |
| 8J ME140180 | PI480821S | 1/4” | 1/8” | 10 |
| 8J ME140140 | PI480822S | 1/4” | 1/4” | 10 |
| 8J ME140380 | PI480823S | 1/4” | 3/8” | 10 |
| 8J ME516140 | PI481022S | 5/16” | 1/4” | 10 |
| 8J ME516380 | PI481023S | 5/16” | 3/8” | 10 |
| 8J ME380140 | PI481222S | 3/8” | 1/4” | 10 |
| 8J ME380380 | PI481223S | 3/8” | 3/8” | 10 |
| 8J ME580120 | PI482024S | 5/8” | 1/2” | 10 |
- Base Unit:
- EA
