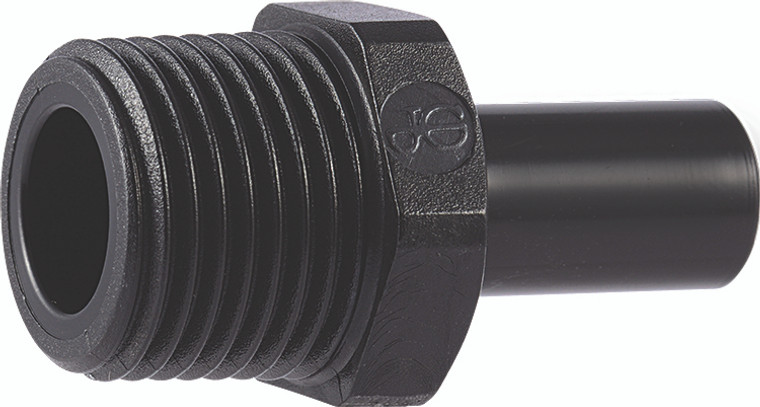

PART MT - MALE TUBE STEM ADAPTER - BSPT THREAD - METRIC - BLACK ACETAL
Members Only Pricing - Login or Signup for Your Special Rates
The PM Range of metric-size push-in
fittings is offered for tube sizes 4mm O.D. to 28mm O.D. The fittings are
manufactured in black acetal copolymer with food grade nitrile O-rings.
Especially produced for foodstuff and potable liquids, they are equally
suitable for air and inert gases and can therefore be used on CO2 lines,
pneumatics applications and vacuum.
WORKING PRESSURES AND
TEMPERATURES:
- 4mm-8mm: Max. 230 psi at
68˚F, Max. 150 psi at 150˚F
- 10mm-22mm: Max. 150 psi at
68°F, Max. 100 psi at 150°F
| PART # | JG PART # | STEM O.D. (MM) | THREAD BSPT (IN) | BAG QTY |
| 8J MT4MM180BSPT | PM050401E | 4 | 1/8” | 10 |
| 8J MT4MM140BSPT | PM050402E | 4 | 1/4” | 10 |
| 8J MT5MM180BSPT | PM050501E | 5 | 1/8” | 10 |
| 8J MT5MM140BSPT | PM050502E | 5 | 1/4” | 10 |
| 8J MT6MM180BSPT | PM050601E | 6 | 1/8” | 10 |
| 8J MT6MM140BSPT | PM050602E | 6 | 1/4” | 10 |
| 8J MT8MM180BSPT | PM050801E | 8 | 1/8” | 10 |
| 8J MT8MM140BSPT | PM050802E | 8 | 1/4” | 10 |
| 8J MT8MM380BSPT | PM050803E | 8 | 3/8” | 10 |
| 8J MT10MM140BSPT | PM051002E | 10 | 1/4” | 10 |
| 8J MT10MM380BSPT | PM051003E | 10 | 3/8” | 10 |
| 8J MT10MM120BSPT | PM051004E | 10 | 1/2” | 10 |
| 8J MT12MM380BSPT | PM051203E | 12 | 3/8” | 10 |
| 8J MT12MM120BSPT | PM051204E | 12 | 1/2” | 10 |
- Base Unit:
- EA
