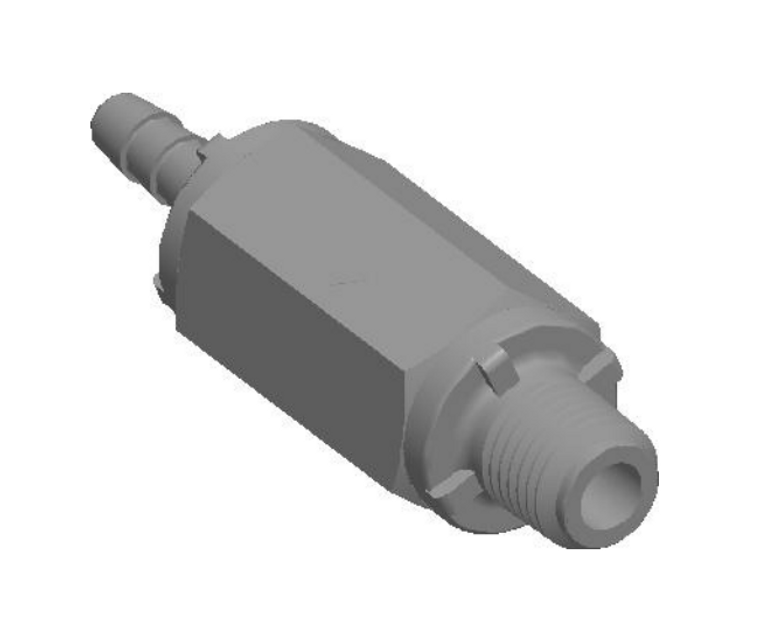

Plastic Check Valves: Series 426 - HOSE BARB X MALE
Members Only Pricing - Login or Signup for Your Special Rates
FEATURES, APPLICATIONS AND/OR NOTES:
- The 426 series PVC valve operates in any position, horizontal or vertical, and is available in mix or matched end combination.
- Standard cracking pressure 1 psi (optional 1/3, 3 or 7 psi available) with a maximum operating pressure of 125 psi and a maximum operating temperature of 140° F.
- Buna seals standard, ethylene propylene or fluoroelastomer seals available.
- Guided stainless steel or teflon ball with O-Quad ring seat. Available with hastelloy springs.
- For technical assistance, custom springs, and end combinations, please call.
- NSF LISTED COMPONENT
| PART # |
| 6S PVC-426-2B2M |
| 6S PVC-426-2B4M |
| 6S PVC-426-4B2M |
| 6S PVC-426-4B4M |
| 6S PVC-426-5B2M |
| 6S PVC-426-5B4M |
| 6S PVC-426-6B2M |
| 6S PVC-426-6B4M |
| 6S PVC-426-8B2M |
| 6S PVC-426-8B4M |
- Base Unit:
- EA
