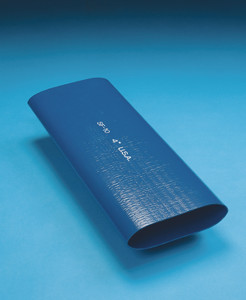

PVC Layflat Discharge Hose - Blue
Loading...

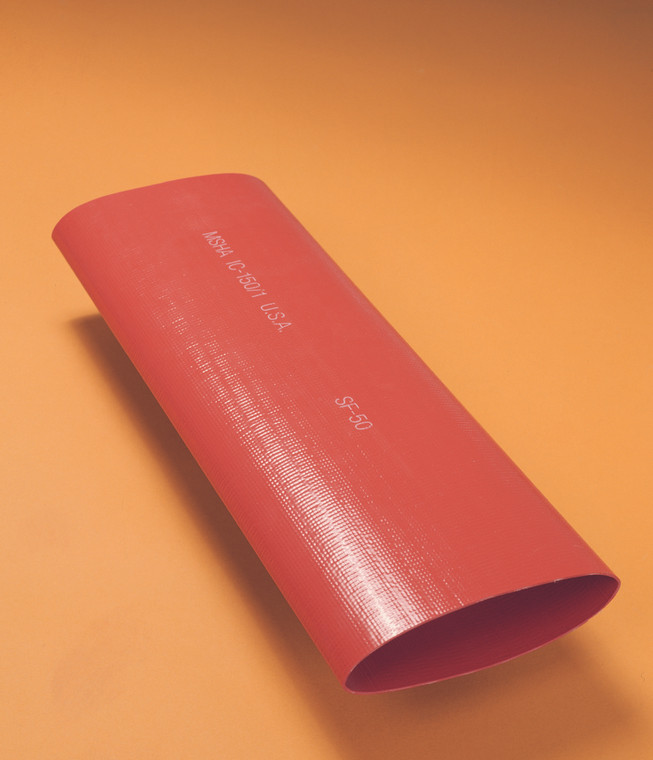

PVC Layflat Discharge Hose - Red
Members Only Pricing - Login or Signup for Your Special Rates
FEATURES:
3-Ply Polyester Yarns Tube and Cover Extruded at the Same Time for Max Bonding
APPLICATIONS:
Mines, Construction, Irrigation, etc
TEMPERATURE RANGE:
-5°F to +170°F
NOTES:
Cuts available on 1-1/2, 2, 3, 4 with 15% cutting charge
| PART # | I.D. | WALL | WORKING PRESSURE AT 70° F | WEIGHT / COIL | LENGTH |
| 1T POLYR150-300 | 1-1/2’’ | 0.079” | 150 | 80 LBS | 300’ COIL |
| 1T POLYR200-300 | 2’’ | 0.087” | 150 | 103 LBS | 300’ COIL |
| 1T POLYR300-300 | 3’’ | 0.095” | 150 | 164 LBS | 300’ COIL |
| 1T POLYR400-300 | 4’’ | 0.102” | 150 | 254 LBS | 300’ COIL |
| 1T POLYR600-300 | 6” | 0.119” | 150 | 400 LBS | 300’ COIL |
| 1T POLYR800-100 | 8” | 0.134” | 115 | 189 LBS | 100’ COIL |
- Base Unit:
- FT
