Deck Mount Lab Fixture W/Valve-Metered Flow
Loading...
Recirculating Deck Mount Fixture
Members Only Pricing - Login or Signup for Your Special Rates
SPEARS® Lab Fixtures
SPEARS® Lab Fixtures have 100% corrosion resistance - with no metal parts.
Spears® Lab Fixtures have no metal parts; this provides full resistance to internal or environmental corrosion. These fixtures are compatible with all laboratory service lines. Lab Fixtures are produced from PVC (gray) and CPVC (for hot water), or special Low-Extractable PVC for high purity applications, and are available in a variety of types and configurations.Deck Mount
Base configuration for horizontal surface mounting.
Panel Mount
Base configuration for vertical surface mounting.
Standard Gooseneck Units
Select
all-plastic needle valve unit (no elastomer seals) for metered flow or
ball valve unit (choice of EPDM or FKM seals) for direct flow. Unit
includes valve, gooseneck with serrated tip, and base with nut for
mounting. Select Deck or Panel Mount style.
Standard Turret Units
Direct
flow ball valve (choice of EPDM or FKM seals) with serrated tip and
base with connecting nipple and nut for mounting. Select Deck or Panel
Mount style.
Remote Valve Units (No Valve)
Same as standard units less valve for use with remotely located valve.

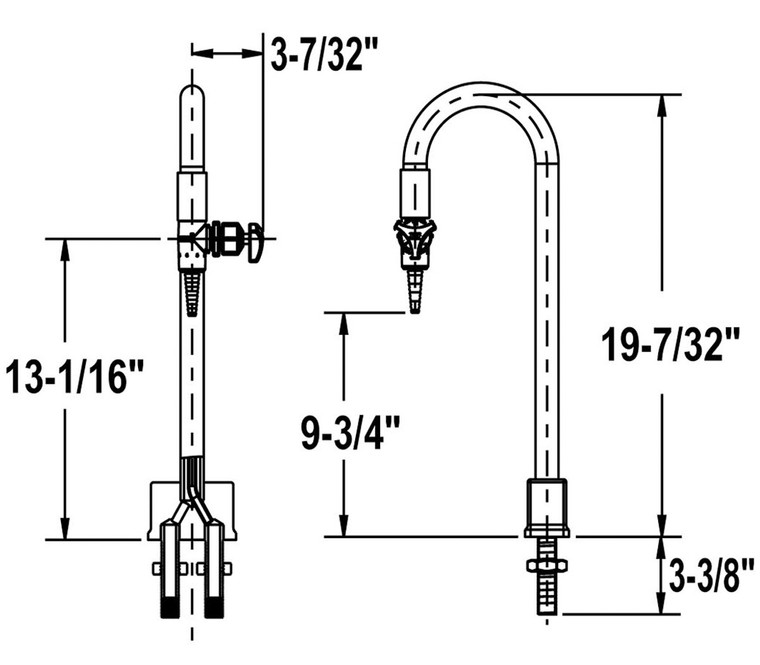

Recirculating Units
Special
design provides continuous water motion without dead-leg areas of
contamination and potential bacteria build-up. Internal supply tube
fully circulates water through the entire fixture when connected to
circulating water supply. Unit features gooseneck with terminally
mounted all-plastic needle valve and serrated tip (no elastomer seals)
for metered flow. Base is Deck Mount only with inlet and outlet
connecting nipples with mounting nuts.
**We also have access to the entire SPEARS® PRODUCT SOURCE BOOK. Ask our sales team if there is anything you are looking for that you don't see online**
