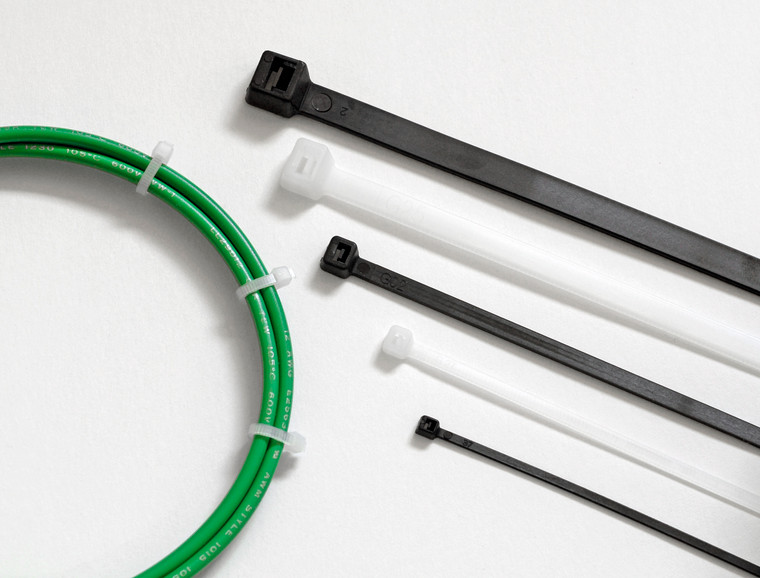

Marker Cable Ties
Loading...
FEATURES:
- Self-locking ties are easily secured with hand or tool
- Government recognized qualified products
- Complete stock in both natural and black colors
- UL recognized = E150214
- Made of Nylon 6/6
- Self-extinguishing 94V-2
- Usable up to 185°F
- Applicable to MIL-SPECs MS3367-4, MS3367-5, MS3367-1, MS3367-7, MS3367-2, MS3367-3, MS3367-6
NOTES:
- Standard Bags of 100 Pcs.
| PART # | APPROX. WIDTH IN. (MM) | APPROX. LENGTH IN. (MM) | MAX BUNDLE DIAMETER IN. (MM) | MIN. LOOP TENSILE STRENGTH LB. (KG) |
| 5G GT-18S1 | 0.10” (2.5) | 3-1/8” (80) | 5/8” (17) | 18 (8) |
| 5G GT-18S3 | 0.10” (2.5) | 4” (100) | 7/8” (22) | 18 (8) |
| 5G GT-18M1 | 0.10” (2.5) | 5-5/8” (142) | 1-3/8” (35) | 18 (8) |
| 5G GT-18M2 | 0.10” (2.5) | 6-3/8” (160) | 1-9/16” (40) | 18 (8) |
| 5G GT-18L | 0.10” (2.5) | 8” (203) | 2” (50) | 18 (8) |
| 5G GT-40S | 0.14” (3.6) | 5-7/8” (150) | 1-3/8” (35) | 40 (18) |
| 5G GT-40M | 0.14” (3.6) | 8” (203) | 2” (50) | 40 (18) |
| 5G GT-40L | 0.14” (3.6) | 11-5/8” (295) | 3” (77) | 40 (18) |
| 5G GT-50S1 | 0.19” (4.8) | 6-3/8” (162) | 1-9/16” (40) | 50 (23) |
| 5G GT-50S2 | 0.19” (4.8) | 7-3/8” (188) | 1-3/4” (45) | 50 (23) |
| 5G GT-50M | 0.19” (4.8) | 11-1/2” (292) | 3” (77) | 50 (23) |
| 5G GT-50L1 | 0.19” (4.8) | 14-1/2” (368) | 4” (102) | 50 (23) |
| 5G GT-50L2 | 0.19” (4.8) | 17” (430) | 4-1/2” (115) | 50 (23) |
| 5G GT-120S | 0.30” (7.6) | 8” (200) | 2” (57) | 120 (54) |
| 5G GT-120M | 0.30” (7.6) | 14-1/2” (368) | 4” (102) | 120 (54) |
| 5G GT-120L | 0.30” (7.6) | 28” (710) | 7-1/2” (190) | 120 (54) |
| 5G GT-175S | 0.35” (9) | 20-7/8” (530) | 6” (152) | 175 (9.5) |
| 5G GT-175M | 0.35” (9) | 25-3/4” (655) | 7-1/2” (194) | 175 (9.5) |
| 5G GT-175L1 | 0.35” (9) | 28” (710) | 8” (229) | 175 (9.5) |
| 5G GT-175L3 | 0.35” (9) | 36” (912) | 10-1/3” (263) | 175 (9.5) |
- Base Unit:
- EA
