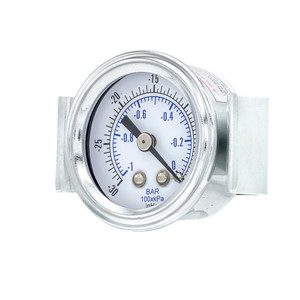

Type 102D | Steel Case, Dry - Center-Back Mount

Type 102D | Steel Case, Dry - Center-Back Mount

SKU:
9P102D
Members Only Pricing - for Your Special Rates
Current Stock:
Sign In
Description

FEATURES:

  • Steel Case, Chrome Bezel, Plastic Lens
  • Brass Tube and Socket, Center-Back Mount


CONNECTION SIZES:

  • 1/8” Thread Size on 1-1/2” Dial Size
  • 1/8” and 1/4” Thread Sizes on 2” Dial Size
  • 1/4” Thread Size on 2-1/2” Dial Size


NOTE:

Due to the ongoing import tariffs, a 11.25% surcharge will be applied to all orders, effective 9/4/2019 until further notice.


PressuresDial Size
1/8" Thread Size1/4" Thread Size
1-1/2"2"2"2-1/2"
A = 30/0" hg VAC9P102D-158A 9P102D-208A 9P102D-204A 9P102D-254A
CB = 30/0/15 PSI9P102D-158CB 9P102D-208CB 9P102D-204CB 9P102D-254CB
CC = 30/0/30 PSI9P102D-158CC 9P102D-208CC 9P102D-204CC 9P102D-254CC
CD = 30/0/60 PSI9P102D-158CD 9P102D-208CD 9P102D-204CD 9P102D-254CD
CE = 30/0/100 PSI9P102D-158CE 9P102D-208CE 9P102D-204CE 9P102D-254CE
CF = 30/0/150 PSI9P102D-158CF 9P102D-208CF 9P102D-204CF 9P102D-254CF
CG = 30/0/200 PSI9P102D-158CG 9P102D-208CG 9P102D-204CG 9P102D-254CG
CH = 30/0/300 PSI9P102D-158CH 9P102D-208CH 9P102D-204CH 9P102D-254CH
B = 0/15 PSI9P102D-158B 9P102D-208B 9P102D-204B 9P102D-254B
C = 0/30 PSI9P102D-158C 9P102D-208C 9P102D-204C 9P102D-254C
D = 0/60 PSI9P102D-158D 9P102D-208D 9P102D-204D 9P102D-254D
E = 0/100 PSI9P102D-158E 9P102D-208E 9P102D-204E 9P102D-254E
F = 0/160 PSI9P102D-158F 9P102D-208F 9P102D-204F 9P102D-254F
G = 0/200 PSI9P102D-158G 9P102D-208G 9P102D-204G 9P102D-254G
H = 0/300 PSI9P102D-158H 9P102D-208H 9P102D-204H 9P102D-254H
I = 0/400 PSI9P102D-158I 9P102D-208I 9P102D-204I 9P102D-254I
J = 0/500 PSI9P102D-158J 9P102D-208J 9P102D-204J 9P102D-254J
K = 0/600 PSI9P102D-158K 9P102D-208K 9P102D-204K 9P102D-254K
L = 0/800 PSI---9P102D-254L
M = 0/1000 PSI---9P102D-254M
N = 0/1500 PSI---9P102D-254N
O = 0/2000 PSI---9P102D-254O
P = 0/3000 PSI---9P102D-254P
Q = 0/4000 PSI---9P102D-254Q
R = 0/5000 PSI---9P102D-254R
S = 0/6000 PSI---9P102D-254S


Additional Information
Base Unit:
EA
