John Guest Half Cartridge Fittings for OEM Manufacturing

Manufacturing equipment with tubing connections? John Guest half cartridge fittings offer a cleaner alternative to threading female ports and screwing in male adapters.

What Are Half Cartridge Fittings?

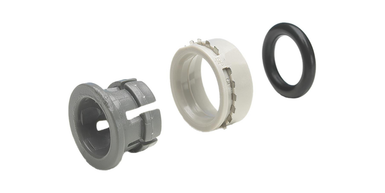

Half cartridges are a three-component system that presses directly into molded cavities:

1. Collet - Grips the tubing
2. Body ring - Presses into the cavity
3. O-ring - Seals against the tubing

Together, they create a John Guest push-connect insertion point integrated into your equipment.

Old Method vs. Half Cartridges

Traditional approach: Thread female threads into the cavity, then screw in a John Guest male adapter.

Half cartridge approach: Machine or mold the cavity to spec, press in the body ring, insert the collet and O-ring, then push tubing directly into the connection.

The result? Fewer components, fewer leak points, and a cleaner look.

Installation & Applications

1. Create cavity to exact half cartridge specifications
2. Press the body ring into the cavity
3. Insert the collet
4. Place the O-ring inside
5. Push tubing into the connection

Once installed, it functions like any John Guest push-connect fitting. Half cartridges work well for manufacturers building:

• RO systems
• Water treatment equipment
• Manifolds
• Any equipment requiring tubing connections

Options

Specialty Sales stocks John Guest half cartridges in the following options:

Body:

• Acetal (gray)
• Polypropylene (white)
• Brass
• Stainless Steel

Collet:

• Acetal (gray)
• Polypropylene (white)

O-Rings:

• EPDM (standard water applications)
• Viton (enhanced chemical resistance)

All materials are lead-free, food-grade, with NSF 51 and NSF 61 listings.

For sizes, we have:

• Imperial: 1/4", 3/8", 1/2" tube O.D.  CTS sizes available as well.
• Metric: 4mm, 5mm, 6mm, 8mm, 10mm Tube O.D.

Why Manufacturers Prefer Half Cartridges

• Cleaner product appearance (no threaded adapters sticking out)
• Fewer leak points
• Easier assembly on production lines
• More compact equipment design
• Low assembly effort

We're seeing increased interest in half cartridge fittings from OEM manufacturers. Why? Because they help simplify the build process and improve the finished product.

Need Half Cartridges?

Contact our sales team to discuss half cartridge options for your manufacturing application! We stock bulk quantities in various sizes and materials.
