"K" Series Punch Type Clamps - PRE-FORMED CLAMPS
Members Only Pricing - Login or Signup for Your Special Rates
K-Clamps may be secured by either a punch or fold-up method.
Less tension loss. Patented hole in inner band gives better internal mechanical locking after punching.

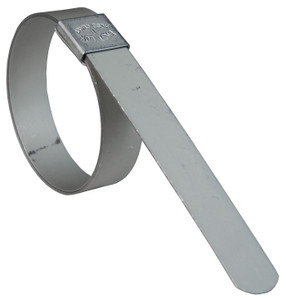

Preformed Clamps are available in sizes ranging from 13/16” to 8” I.D.’s. The 3/4” width sizes range from 2” to 8” I.D.’s. Each clamp is a double wrapped metal band formed to a given diameter. The clamp is designed to be slid over the hose end before the fitting is inserted. A punch-type or fold-up tool is then used to apply the clamp.
| WIDTH | I.D. | CLAMPS / PACKAGE | GALVANIZED STEEL | STAINLESS STEEL | ||
| PART # | PART # | |||||
| 3/8” | 13/16” | 100 | 5F K3 | 5F KS3 | ||
| 1-3/8” | 100 | 5F K311 | 5F KS311 | |||
| 5/8” | 1” | 100 | 5F K4 | 5F KS4 | ||
| 1-1/4” | 100 | 5F K5 | 5F KS5 | |||
| 1-1/2” | 100 | 5F K6 | 5F KS6 | |||
| 1-3/4” | 100 | 5F K7 | 5F KS7 | |||
| 2” | 100 | 5F K8 | 5F KS8 | |||
| 2-1/4” | 100 | 5F K9 | 5F KS9 | |||
| 2-1/2” | 50 | 5F K10 | 5F KS10 | |||
| 2-3/4” | 50 | 5F K11 | 5F KS11 | |||
| 3” | 50 | 5F K12 | 5F KS12 | |||
| 3-1/2” | 50 | 5F K14 | 5F KS14 | |||
| 4” | 25 | 5F K16 | 5F KS16 | |||
| 4-1/2” | 25 | 5F K18 | 5F KS18 | |||
| 5” | 25 | 5F K20 | 5F KS20 | |||
| 6” | 25 | 5F K24 | 5F KS24 | |||
| 7” | 25 | 5F K28 | 5F KS28 | |||
| 8” | 25 | 5F K32 | 5F KS32 |
- Base Unit:
- EA
