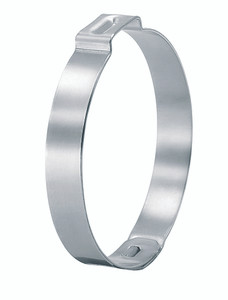

Oetiker 1-Ear Clamps
Loading...
FEATURES:

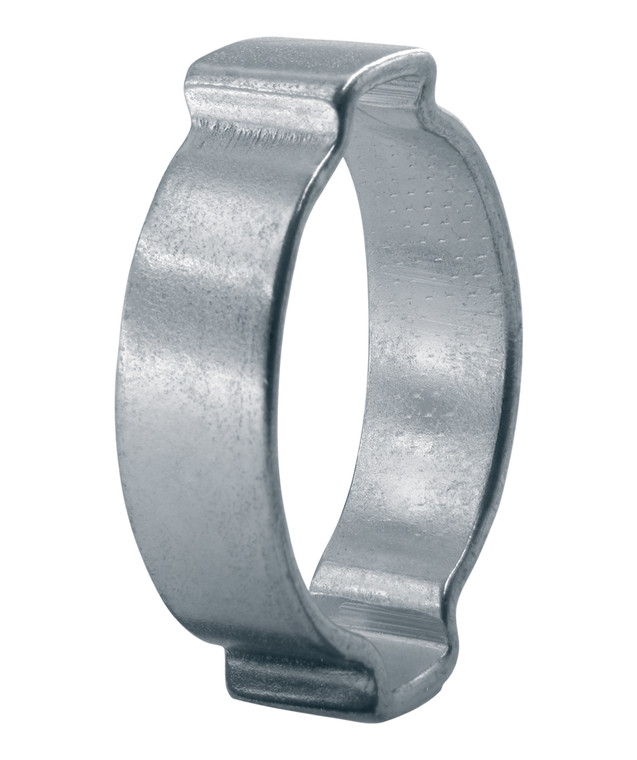

- 2-Ear version: extended clamping range
- Compact one-piece clamp: for robust, secure connections
- Clamp ear: fast and simple installation, visible deformation provides evidence of proper closure
- Deburred edges: reduced risk of damage to parts being clamped
- Prices on larger sizes available on request
| SIZE | RANGE | WIDTH | PCS / BOX (BAG) | GALVANIZED STEEL | STAINLESS STEEL | ||
| PART # | PART # | ||||||
| 5/32” | 0.122” – 0.161” | 0.138” | 100 | 5O 0041 | 5O 0041R | ||
| 11/64” | 0.138” – 0.177” | 0.138” | 100 | 5O 0045 | 5O 0045R | ||
| 3/16” | 0.134” – 0.197” | 0.197” | 100 | 5O 0305 | 5O 0305R | ||
| 1/4” | 0.197” – 0.276” | 0.236” | 100 | 5O 0507 | 5O 0507R | ||
| 5/16” | 0.276” – 0.354” | 0.276” | 100 | 5O 0709 | 5O 0709R | ||
| 3/8” | 0.319” – 0.433” | 0.276” | 100 | 5O 0811 | 5O 0811R | ||
| 1/2” | 0.425” – 0.512” | 0.276” | 100 | 5O 1113 | 5O 1113R | ||
| 9/16” | 0.492” – 0.591” | 0.295” | 100 | 5O 1315 | 5O 1315R | ||
| 19/32” | 0.551” – 0.669” | 0.315” | 100 | 5O 1517 | 5O 1517R | ||
| 5/8” | 0.591” – 0.709” | 0.315” | 100 | 5O 1518 | 5O 1518R | ||
| 3/4” | 0.638” – 0.787” | 0.335” | 100 | 5O 1720 | 5O 1720R | ||
| 13/16” | 0.709” – 0.866” | 0.354” | 100 | 5O 1922 | 5O 1922R | ||
| 7/8” | 0.748” – 0.906” | 0.354” | 100 | 5O 2023 | 5O 2023R | ||
| 15/16” | 0.827” – 0.984” | 0.394” | 100 | 5O 2225 | 5O 2225R | ||
| 1” | 0.886” – 1.063” | 0.394” | 100 | 5O 2327 | 5O 2327R | ||
| 1-1/16” | 0.945” – 1.102” | 0.394” | 100 | 5O 2528 | 5O 2528R | ||
| 1-1/8” | 1.035” – 1.220” | 0.394” | 100 | 5O 2731 | 5O 2731R | ||
| 1-5/16” | 1.154” – 1.339” | 0.394” | 100 | 5O 3134 | 5O 3134R | ||
| 1-7/16” | 1.260” – 1.457” | 0.394” | 100 | 5O 3437 | 5O 3437R | ||
| 1-1/2” | 1.378” – 1.575” | 0.394” | 100 | 5O 3740 | 5O 3740R | ||
| 1-5/8” | 1.480” – 1.693” | 0.394” | 100 | 5O 4043 | 5O 4043R | ||
| 1-3/4” | 1.598” – 1.811” | 0.394” | 100 | 5O 4346 | 5O 4346R |
- Base Unit:
- EA
