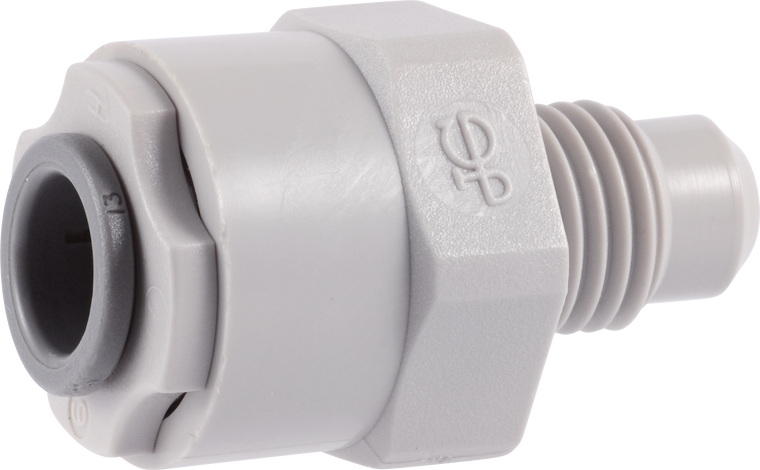

PART SMCF - FLARE MALE CONNECTOR - SUPERSEAL - MFL THREAD

PART SMCF - FLARE MALE CONNECTOR - SUPERSEAL - MFL THREAD

SKU:
8JSMCF
UOM:
EACH
Members Only Pricing - for Your Special Rates
Current Stock:
Sign In
Description

For use with Stainless Steel Tubing



The SI Range of inch-size push-in fittings is offered for tube sizes 1/4” O.D. to 3/8” O.D. Superseal is a special fitting designed to provide extra grip on stainless steel tubes. The Superseal design features a collet with integrally molded stainless steel teeth similar to the standard Super Speedfit design, but incorporating an additional hand-operated nut and wedge shaped plastic washer to apply extra pressure to the collet and the double O-ring seals. This ensures that the collet teeth bite thoroughly into the tube to provide grip, while at the same time compressing the o-rings to further enhance sealing.



WORKING PRESSURES AND TEMPERATURES:

  • 1/4”-5/16”: Max. 230 psi at 68˚F, Max. 150 psi at 150˚F
  • 3/8”: Max. 150 psi at 68°F, Max. 100 psi at 150°F


PART #JG PART #SUPERSEAL O.D.SPEEDFIT O.D.BAG QTY
8J SMCF516140SM0108F4S5/16”1/4”10
8J SMCF516380SM0108F6S5/16”3/8”10
