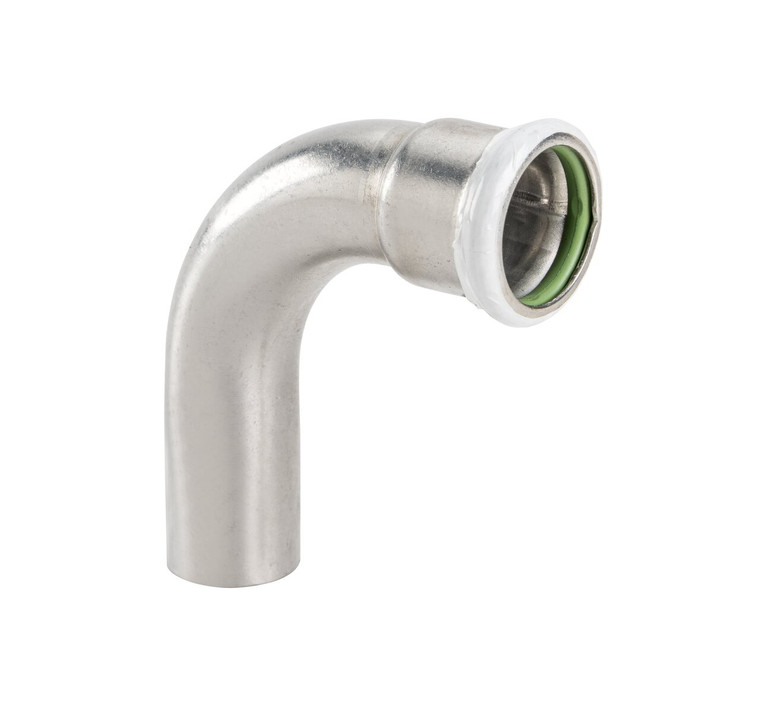

Stainless Press 90 Street Elbow

Stainless Press 90 Street Elbow

SKU:
7MSP90SEL
Members Only Pricing - for Your Special Rates
Current Stock:
Sign In
Description
  • Stainless Steel
  • Available in sizes 1/2" - 2"
  • EPDM sealing element - green visual indication press ring for water applications
  • EPDM Temperature Range: -4°F to 230°F ( -20°C to 110°C)
  • FKM sealing element - white visual indication press ring for industrial applications
  • FKM Temperature Range:  4ºF to 356ºF (-20ºC to 180ºC) for fittings and valves
  • HNBR sealing element - yellow visual indication press ring for gas applications
  • HNBR Temperature Range: -31°F to 248°F (-35°C to 120°C) for Fittings and -13°F to 248°F (-25°C to 120°C) for Valves
  • VIPR is a PVC band that can be easily removed upon completion of press installation
  • Constructed of 316L as per the ASTM AISI specification
  • Mates with Schedule 5 or Schedule 10 Stainless Steel Pipe in Types 304 or 316
    • Inventory IDProduct TypeNominal SizeSealing Element
    7MSP90SEL050EStainless Press 90 Street Elbow1/2"EPDM
    7MSP90SEL050FStainless Press 90 Street Elbow1/2"FKM
    7MSP90SEL050HStainless Press 90 Street Elbow1/2"HNBR
    7MSP90SEL075EStainless Press 90 Street Elbow3/4"EPDM
    7MSP90SEL075FStainless Press 90 Street Elbow3/4"FKM
    7MSP90SEL075HStainless Press 90 Street Elbow3/4"HNBR
    7MSP90SEL100EStainless Press 90 Street Elbow1"EPDM
    7MSP90SEL100FStainless Press 90 Street Elbow1"FKM
    7MSP90SEL100HStainless Press 90 Street Elbow1"HNBR
    7MSP90SEL125EStainless Press 90 Street Elbow1-1/4"EPDM
    7MSP90SEL125FStainless Press 90 Street Elbow1-1/4"FKM
    7MSP90SEL125HStainless Press 90 Street Elbow1-1/4"HNBR
    7MSP90SEL150EStainless Press 90 Street Elbow1-1/2"EPDM
    7MSP90SEL150FStainless Press 90 Street Elbow1-1/2"FKM
    7MSP90SEL150HStainless Press 90 Street Elbow1-1/2"HNBR
    7MSP90SEL200EStainless Press 90 Street Elbow2"EPDM
    7MSP90SEL200FStainless Press 90 Street Elbow2"FKM
    7MSP90SEL200HStainless Press 90 Street Elbow2"HNBR
