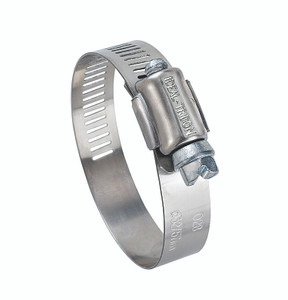

IDEAL Worm Gear Clamps

IDEAL Worm Gear Clamps

SKU:

5IIDEAL

Members Only Pricing - for Your Special Rates

Current Stock:

#57 SERIES

1/2” Wide Stainless Steel Band and Housing
5/16” Hex Head Screw-Zinc Plated, Yellow Dichromate, Carbon Steel

#67-1 SERIES

1/2” Wide Stainless Steel Band and Housing
5/16” Hex Head Screw - 410 Stainless Steel

#67-4 SERIES

1/2” Wide 300 Marine Grade Stainless Steel Band Housing
5/16” Hex Head Screw - 300 Marine Grade Stainless Steel
Pricing available on request

CLAMP SIZE	CLAMP RANGE	PCS / BOX (BOXED)	PCS / BOX (BULK)		#57 GL SERIES		#67-1 SS SERIES
CLAMP SIZE	CLAMP RANGE	PCS / BOX (BOXED)	PCS / BOX (BULK)		PART #		PART #
6	3/8” – 7/8”	10	500		5I 57-06G		5I 67-1-06S
8	7/16” – 1”	10	500		5I 57-08G		5I 67-1-08S
10	1/2” – 1-1/16”	10	500		5I 57-10G		5I 67-1-10S
12	1/2” – 1-1/4”	10	500		5I 57-12G		5I 67-1-12S
16	11/16” – 1-1/2”	10	500		5I 57-16G		5I 67-1-16S
20	3/4” – 1-3/4”	10	500		5I 57-20G		5I 67-1-20S
24	1” – 2”	10	500		5I 57-24G		5I 67-1-24S
28	1-1/4” – 2-1/4”	10	500		5I 57-28G		5I 67-1-28S
32	1-1/2” – 2-1/2”	10	500		5I 57-32G		5I 67-1-32S
36	1-3/4” – 2-3/4”	10	500		5I 57-36G		5I 67-1-36S
40	2” – 3”	10	500		5I 57-40G		5I 67-1-40S
44	2-1/4” – 3-1/4”	10	500		5I 57-44G		5I 67-1-44S
48	2-1/2” – 3-1/2”	10	500		5I 57-48G		5I 67-1-48S
52	2-3/4” – 3-3/4”	10	250		5I 57-52G		5I 67-1-52S
56	3” – 4”	10	250		5I 57-56G		5I 67-1-56S
64	2-1/2” – 4-1/2”	10	250		5I 57-64G		5I 67-1-64S
72	3” – 5”	10	250		5I 57-72G		5I 67-1-72S
80	3-1/2” – 5-1/2”	10	150		5I 57-80G		5I 67-1-80S
88	4” – 6”	10	150		5I 57-88G		5I 67-1-88S
96	4-1/2” – 6-1/2”	10	150		5I 57-96G		5I 67-1-96S
104	5” – 7”	10	100		5I 57-104G		5I 67-1-104S

Base Unit:: EA
