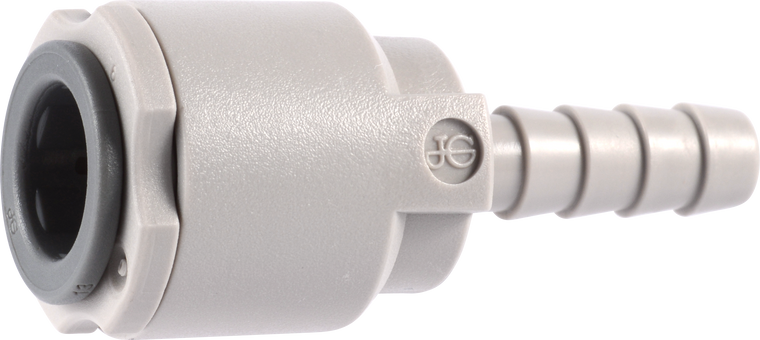

PART SBC - SWIVEL BARB CONNECTOR - SUPERSEAL
Members Only Pricing - Login or Signup for Your Special Rates
For use with Stainless Steel Tubing
The SI Range of inch-size push-in fittings is offered for tube sizes 1/4” O.D. to 3/8” O.D. Superseal is a special fitting designed to provide extra grip on stainless steel tubes. The Superseal design features a collet with integrally molded stainless steel teeth similar to the standard Super Speedfit design, but incorporating an additional hand-operated nut and wedge shaped plastic washer to apply extra pressure to the collet and the double O-ring seals. This ensures that the collet teeth bite thoroughly into the tube to provide grip, while at the same time compressing the o-rings to further enhance sealing.
WORKING PRESSURES AND TEMPERATURES:
- 1/4”-5/16”: Max. 230 psi at 68˚F, Max. 150 psi at 150˚F
- 3/8”: Max. 150 psi at 68°F, Max. 100 psi at 150°F
| PART # | JG PART # | SUPERSEAL O.D. | HOSE I.D. | BAG QTY |
| 8J SBC140140 | SI270808S | 1/4” | 1/4” | 10 |
| 8J SBC516140 | SI271008S | 5/16” | 1/4” | 10 |
| 8J SBC380140 | SI271208S | 3/8” | 1/4” | 10 |
- Base Unit:
- EA
