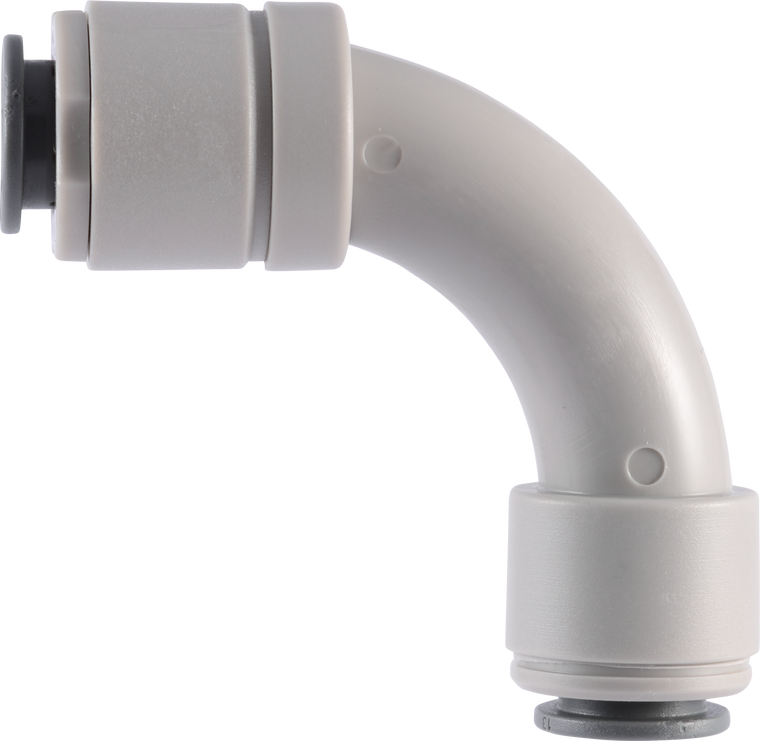

PART SFBE - FLOW BEND CONNECTOR - SUPERSEAL - SPEEDFIT
Members Only Pricing - Login or Signup for Your Special Rates
For use with Stainless Steel Tubing
The SI Range of inch-size push-in
fittings is offered for tube sizes 1/4” O.D. to 3/8” O.D. Superseal is
a special fitting designed to provide extra grip on stainless steel tubes.
The Superseal design features a collet with integrally molded stainless
steel teeth similar to the standard Super Speedfit design, but incorporating
an additional hand-operated nut and wedge shaped plastic washer to apply
extra pressure to the collet and the double O-ring seals. This ensures
that the collet teeth bite thoroughly into the tube to provide grip, while
at the same time compressing the o-rings to further enhance sealing.
WORKING PRESSURES AND
TEMPERATURES:
- 1/4”-5/16”: Max. 230 psi at
68˚F, Max. 150 psi at 150˚F
- 3/8”: Max. 150 psi at 68°F,
Max. 100 psi at 150°F
| PART # | JG PART # | SUPERSEAL O.D. | SPEEDFIT O.D. | BAG QTY |
| 8J SFBE516516 | SM420808S | 5/16” | 5/16” | 10 |
| 8J SFBE516380 | SI421012S | 5/16” | 3/8” | 10 |
| 8J SFBE380380 | SI421210S | 3/8” | 5/16” | 10 |
| 8J SFBE380380 | SI421212S | 3/8” | 3/8” | 10 |
