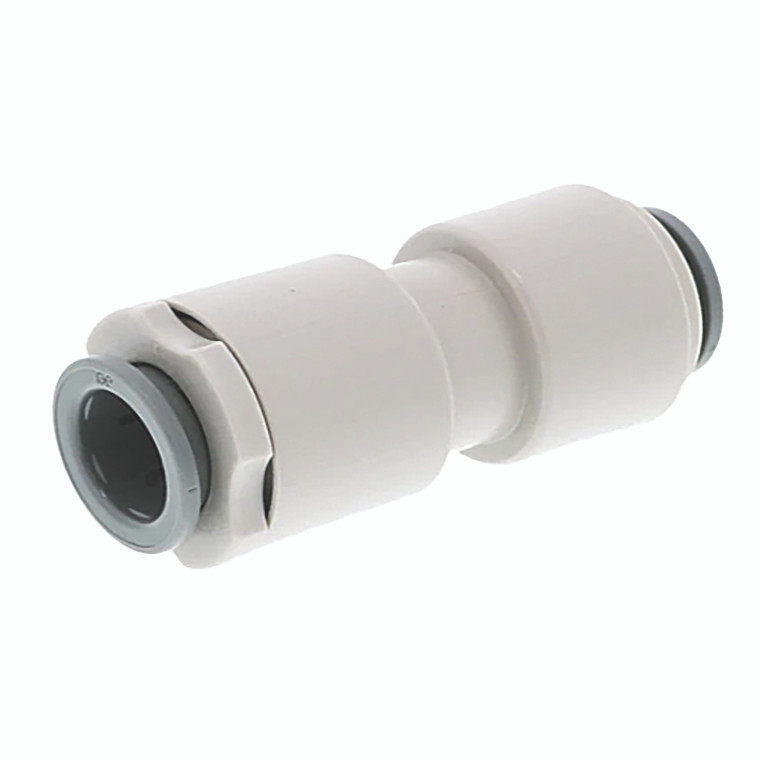

PART SSC - UNION CONNECTOR - SUPERSEAL - SPEEDFIT

PART SSC - UNION CONNECTOR - SUPERSEAL - SPEEDFIT

SKU:
8JSSC
Members Only Pricing - for Your Special Rates
Current Stock:
Sign In
Description

For use with Stainless Steel Tubing



The SI Range of inch-size push-in fittings is offered for tube sizes 1/4” O.D. to 3/8” O.D. Superseal is a special fitting designed to provide extra grip on stainless steel tubes. The Superseal design features a collet with integrally molded stainless steel teeth similar to the standard Super Speedfit design, but incorporating an additional hand-operated nut and wedge shaped plastic washer to apply extra pressure to the collet and the double O-ring seals. This ensures that the collet teeth bite thoroughly into the tube to provide grip, while at the same time compressing the o-rings to further enhance sealing.



WORKING PRESSURES AND TEMPERATURES:

  • 1/4”-5/16”: Max. 230 psi at 68˚F, Max. 150 psi at 150˚F
  • 3/8”: Max. 150 psi at 68°F, Max. 100 psi at 150°F


PART #JG PART #SUPERSEAL O.D.SPEEDFIT O.D.BAG QTY
8J SSC516516SM040808S5/16”5/16”10
8J SSC516380SI041012S5/16”3/8”10
8J SSC380516SI041210S3/8”5/16”10
8J SSC380380SI041212S3/8”3/8”10
Additional Information
Base Unit:
EA
