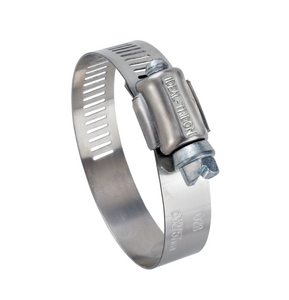

POW'R-GEAR® 60 High Performance Clamps

POW'R-GEAR® 60 High Performance Clamps

SKU:

5IPWRGEAR

Members Only Pricing - for Your Special Rates

Current Stock:

FEATURES:

Designed for High Vibration and Stubborn Leakage Applications
Extra Wide 5/8” Heavy Gauge Band and a Wide Profile Housing that Provides Maximum Engagement of Screw Threads to Band
Engineered to deliver exceptionally high rates of band tension to handle the toughest sealing jobs.
Installation Torque: 75 to 90 in-lbs (8.5 to 10 Nm)
Available in additional materials, including marine grade stainless steel

APPLICATIONS:

Industrial Machinery
Heavy Truck
Farm and Off-road Equipment Engines

MATERIAL SPECIFICATIONS:

Screw: 5/16” Hex Head; 410 Stainless Steel
Housing: 304 Stainless Steel
Band: 5/8”, 304 Stainless Steel

CLAMP SIZE	CLAMP RANGE		BOX			BULK
CLAMP SIZE	CLAMP RANGE		PART #	PACKAGE QTY.		PART #	PACKAGE QTY.
175	1” ─ 1-3/4”		5I 60175	10		5I 60175B	400
212	1-1/4” ─ 2-1/8”		5I 60200	10		5I 60200B	400
262	1-3/4” ─ 2-5/8”		5I 60250	10		5I 60250B	200
312	2-1/4” ─ 3-1/8”		5I 60300	10		5I 60300B	300
362	2-3/4” ─ 3-5/8”		5I 60350	10		5I 60350B	250
412	3-1/4” ─ 4-1/8”		5I 60400	10		5I 60400B	200
462	3-3/4” ─ 4-5/8”		5I 60450	10		5I 60450B	200
512	4-1/4” ─ 5-1/8”		5I 60500	10		5I 60500B	150
562	4-3/4” ─ 5-5/8”		5I 60550	10		5I 60550B	150
612	5-1/4” ─ 6-1/8”		5I 60600	10		5I 60600B	130
662	5-3/4” ─ 6-5/8”		5I 60650	10		5I 60650B	125
712	6-1/4” ─ 7-1/8”		5I 60700	10		5I 60700B	100
762	6-3/4” ─ 7-5/8”		5I 60750	10		5I 60750B	100
812	7-1/4” ─ 8-1/8”		5I 60800	10		5I 60800B	100
862	7-3/4” ─ 8-5/8”		5I 60850	10		5I 60850B	75
912	8-1/4” ─ 9-1/8”		5I 60900	10		5I 60900B	75

Base Unit:: EA
