Stainless Press Union

Stainless Press Union

SKU:
7MSPU
Members Only Pricing - for Your Special Rates
Current Stock:
Sign In
Description
  • Stainless Steel
  • Available in sizes 1/2" - 2"
  • EPDM sealing element - green visual indication press ring for water applications
  • EPDM Temperature Range: -4°F to 230°F ( -20°C to 110°C)
  • FKM sealing element - white visual indication press ring for industrial applications
  • FKM Temperature Range:  4ºF to 356ºF (-20ºC to 180ºC) for fittings and valves

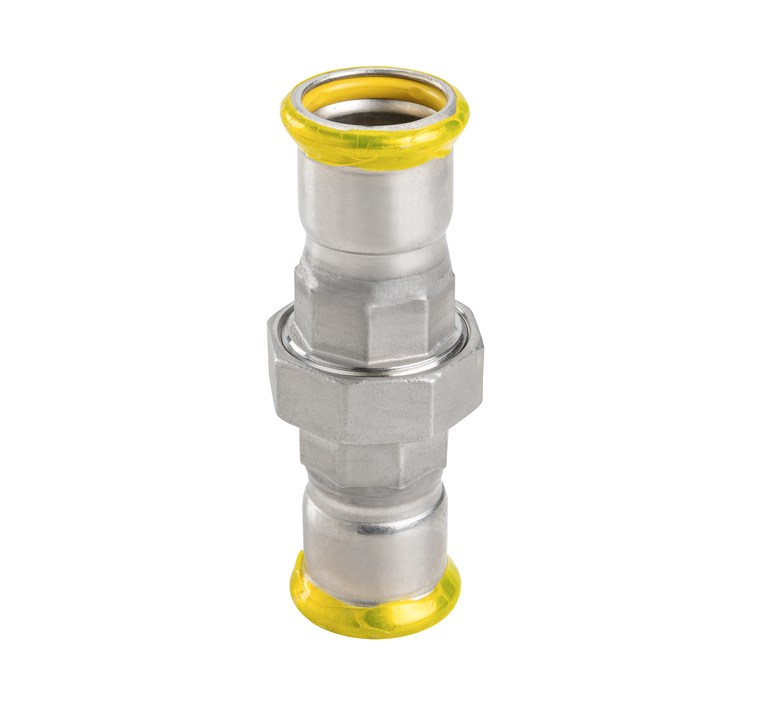

  • HNBR sealing element - yellow visual indication press ring for gas applications
  • HNBR Temperature Range: -31°F to 248°F (-35°C to 120°C) for Fittings and -13°F to 248°F (-25°C to 120°C) for Valves
  • VIPR is a PVC band that can be easily removed upon completion of press installation
  • Constructed of 316L as per the ASTM AISI specification
  • Mates with Schedule 5 or Schedule 10 Stainless Steel Pipe in Types 304 or 316
    • Inventory IDProduct TypeNominal SizeSealing Element
    7MSPU050EStainless Press Union1/2"EPDM
    7MSPU050FStainless Press Union1/2"FKM
    7MSPU050HStainless Press Union1/2"HNBR
    7MSPU075EStainless Press Union3/4"EPDM
    7MSPU075FStainless Press Union3/4"FKM
    7MSPU075HStainless Press Union3/4"HNBR
    7MSPU100EStainless Press Union1"EPDM
    7MSPU100FStainless Press Union1"FKM
    7MSPU100HStainless Press Union1"HNBR
    7MSPU125EStainless Press Union1-1/4"EPDM
    7MSPU125FStainless Press Union1-1/4"FKM
    7MSPU125HStainless Press Union1-1/4"HNBR
    7MSPU150EStainless Press Union1-1/2"EPDM
    7MSPU150FStainless Press Union1-1/2"FKM
    7MSPU150HStainless Press Union1-1/2"HNBR
    7MSPU200EStainless Press Union2"EPDM
    7MSPU200FStainless Press Union2"FKM
    7MSPU200HStainless Press Union2"HNBR
